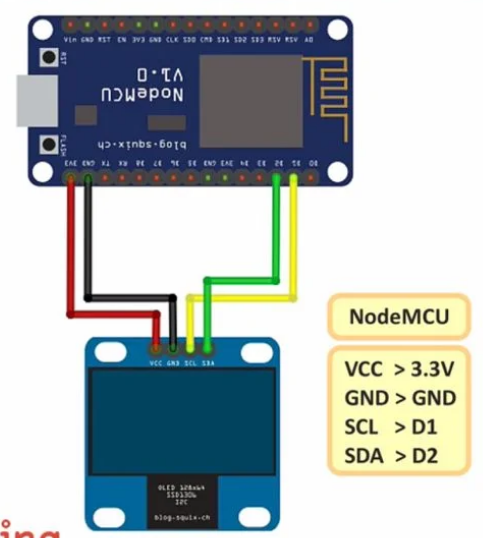

Conexionado
Programa para averiguar la dirección I2C
Lo primero que tenemos que hacer es averiguar la dirección del dispositivo para poder comunicarnos con él a través del I2C. Lo conseguiremos con el siguiente programa:
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
#include <Wire.h> | |
void setup() | |
{ | |
Wire.begin(); | |
Serial.begin(9600); | |
while (!Serial); // Espera al monitor serie | |
Serial.println("\nEscaner I2C"); | |
} | |
void loop() | |
{ | |
byte error, address; | |
int nDevices; | |
Serial.println("Escaneando..."); | |
nDevices = 0; | |
for(address = 1; address < 127; address++ ) | |
{ | |
// El escaner i2c utiliza el valor devuelto por la instrucción | |
// Write.endTransmisstion para reconocer la dirección a la que | |
// está conectado cada dispositivo. | |
Wire.beginTransmission(address); | |
error = Wire.endTransmission(); | |
if (error == 0) | |
{ | |
Serial.print("Dispositivo I2C encontrado en la direccion 0x"); | |
if (address<16) | |
Serial.print("0"); | |
Serial.print(address,HEX); | |
Serial.println(" !"); | |
nDevices++; | |
} | |
else if (error==4) | |
{ | |
Serial.print("Error desconocido en la direccion 0x"); | |
if (address<16) | |
Serial.print("0"); | |
Serial.println(address,HEX); | |
} | |
} | |
if (nDevices == 0) | |
Serial.println("Ningun dispositivo I2C encontrado\n"); | |
else | |
Serial.println("Hecho\n"); | |
delay(5000); // espera 5 segundos para el siguiente escaneo | |
} |
Programa que dibuja logo, líneas , círculos, texto
El siguiente programa tiene las órdenes necesarias para dibujar los elementos descritos. Muchas de ellas están comentadas, siendo solo visibles las primeras en pantalla. Para ver cómo funcionan, descomentar y comentar cada parte.
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
/* | |
ESP8266 - Ejemplo de uso de pantalla OLED 128x64 monocroma por Dani No www.esploradores.com | |
Este ejemplo utiliza el núcleo de la librería gráfica de Adafruit GFX y | |
la librería SSD1306 específica para pantallas monocromas 128x64 y 128x32. | |
Estas librerías deben estar instaladas para su funcionamiento. | |
Para instalarlas se debe seleccionar: | |
-Programa -> Incluir librería -> Gestionar Librerías -> Adafruit GFX Library | |
-Programa -> Incluir librería -> Gestionar Librerías -> Adafruit SSD1306 | |
Cuando se instala la librería SSD1306 está configurada por defecto para pantallas 128x32. | |
Al utilizarla para una pantalla 128x64 es preciso reconfigurarla. | |
Para hacerlo debe abrir el fichero Adafruit_SSD1306.h con un editor y | |
descomentar la línea 69 (// #define SSD1306_128_64 ---> #define SSD1306_128_64) y | |
comentar la línea 70 (#define SSD1306_128_32 ---> //#define SSD1306_128_32). | |
Así mismo se debe verificar en la línea 51 que la dirección de I2C de la pantalla es correcta | |
(#define SSD1306_I2C_ADDRESS 0x3C // 128x64 0x3D (default) or 0x3C (if SA0 is grounded)) | |
Por último, también se debe verificar que en la línea 108 de este sketch | |
la dirección I2C de la pantalla también es correcta. | |
Modificado por Aurelio Gallardo - día 16-Abril-2020 | |
*/ | |
/* | |
* https://www.diarioelectronicohoy.com/blog/pantalla-oled-0-96 (descripción de las órdenes) | |
* | |
*/ | |
#include <SPI.h> | |
#include <Wire.h> | |
#include <Adafruit_GFX.h> //Nucleo de la librería gráfica. | |
#include <Adafruit_SSD1306.h> //Librería para pantallas OLED monocromas de 128x64 y 128x32 | |
#include <Fonts/FreeMonoBoldOblique12pt7b.h> | |
#include <Fonts/FreeSerifBold9pt7b.h> // Biblioteca de fuentes: https://learn.adafruit.com/adafruit-gfx-graphics-library/using-fonts | |
// ============================================================================================= | |
// IMPORTANTE: definición de pantalla, y RESET que funciona, sin tocar librería adafruit_SSD1306 | |
// ============================================================================================= | |
#define SCREEN_WIDTH 128 // OLED display width, in pixels | |
#define SCREEN_HEIGHT 64 // OLED display height, in pixels | |
// Declaration for an SSD1306 display connected to I2C (SDA, SCL pins) | |
#define OLED_RESET 0 // Reset pin # (or -1 if sharing Arduino reset pin) | |
Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET); | |
// ============================================================================================= | |
// #define OLED_RESET 0 | |
// Adafruit_SSD1306 display(OLED_RESET); | |
#define NUMFLAKES 10 | |
#define XPOS 0 | |
#define YPOS 1 | |
#define DELTAY 2 | |
int x = 0; | |
int y = 0; | |
const unsigned char PROGMEM logo [] = { | |
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, | |
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, | |
0x00, 0x00, 0x00, 0x00, 0x00, 0x06, 0x80, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, | |
0x00, 0x00, 0x00, 0x00, 0x00, 0x3F, 0xC0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, | |
0x00, 0x00, 0x00, 0x00, 0x00, 0x3F, 0xF0, 0x00, 0x00, 0x07, 0xFF, 0xFF, 0xFF, 0xF8, 0x00, 0x00, | |
0x00, 0x00, 0x00, 0x00, 0x00, 0x7F, 0xFC, 0x00, 0x00, 0x07, 0xF0, 0x00, 0x03, 0xF8, 0x00, 0x00, | |
0x00, 0x00, 0x00, 0x00, 0x00, 0xFF, 0xFC, 0x00, 0x00, 0x07, 0xC0, 0x00, 0x00, 0xF8, 0x00, 0x00, | |
0x00, 0x00, 0x00, 0x00, 0x00, 0xFF, 0xFE, 0x00, 0x00, 0x07, 0x80, 0x00, 0x00, 0x78, 0x00, 0x00, | |
0x00, 0x00, 0x00, 0x7E, 0x00, 0xFF, 0xFE, 0x00, 0x00, 0x07, 0x00, 0x00, 0x00, 0x38, 0x00, 0x00, | |
0x00, 0x00, 0x00, 0xFF, 0x01, 0xFF, 0xFE, 0x00, 0x00, 0x06, 0x00, 0x00, 0x00, 0x18, 0x00, 0x00, | |
0x00, 0x00, 0x03, 0xFF, 0xC0, 0xFF, 0xFE, 0x00, 0x00, 0x06, 0x00, 0x00, 0x00, 0x18, 0x00, 0x00, | |
0x00, 0x00, 0x03, 0xFF, 0xF0, 0xFF, 0xFF, 0x00, 0x00, 0x06, 0x00, 0x00, 0x00, 0x18, 0x00, 0x00, | |
0x00, 0x00, 0x03, 0xFF, 0xF0, 0xFF, 0xFF, 0x00, 0x00, 0x06, 0x00, 0x00, 0x00, 0x18, 0x00, 0x00, | |
0x00, 0x70, 0x03, 0xFF, 0xF0, 0x7F, 0xFF, 0x00, 0x00, 0x06, 0x00, 0x00, 0x00, 0x18, 0x00, 0x00, | |
0x03, 0xFC, 0x07, 0xFF, 0xF8, 0x3F, 0xFF, 0x80, 0x00, 0x06, 0x03, 0x00, 0x30, 0x18, 0x00, 0x00, | |
0x03, 0xFE, 0x07, 0xFF, 0xF8, 0x1F, 0xFF, 0x80, 0x00, 0x06, 0x1F, 0xE1, 0xFE, 0x18, 0x00, 0x00, | |
0x0F, 0xFF, 0x07, 0xFF, 0xF8, 0x07, 0xFF, 0x80, 0x00, 0x06, 0x30, 0x33, 0x03, 0x18, 0x00, 0x00, | |
0x0F, 0xFF, 0xC7, 0xFF, 0xFC, 0xE3, 0xFF, 0xC0, 0x00, 0x06, 0x20, 0x12, 0x01, 0x18, 0x00, 0x00, | |
0x1F, 0xFF, 0xC3, 0xFF, 0xFC, 0xE0, 0x7F, 0xC0, 0x00, 0x06, 0x60, 0x0C, 0x01, 0x98, 0x00, 0x00, | |
0x1F, 0xFF, 0xC1, 0xFF, 0xFC, 0xFC, 0x1F, 0xC0, 0x00, 0x06, 0x63, 0x0C, 0x31, 0x98, 0x00, 0x00, | |
0x1F, 0xFF, 0xE0, 0xFF, 0xFE, 0x7F, 0x03, 0xE0, 0x00, 0x06, 0x60, 0x0C, 0x01, 0x98, 0x00, 0x00, | |
0x1F, 0xFF, 0xE0, 0x7F, 0xFE, 0x7F, 0xC0, 0xE0, 0x00, 0x06, 0x20, 0x12, 0x01, 0x18, 0x00, 0x00, | |
0x0F, 0xFF, 0xE0, 0x1F, 0xFE, 0x7F, 0xF8, 0x40, 0x00, 0x06, 0x30, 0x33, 0x03, 0x18, 0x00, 0x00, | |
0x0F, 0xFF, 0xF7, 0x8F, 0xFF, 0x3F, 0xFC, 0x00, 0x00, 0x06, 0x1C, 0xE1, 0xCE, 0x18, 0x00, 0x00, | |
0x0F, 0xFF, 0xF7, 0xC0, 0xFF, 0x3F, 0xFF, 0x80, 0x00, 0x06, 0x07, 0x80, 0x78, 0x18, 0x00, 0x00, | |
0x07, 0xFF, 0xF7, 0xF8, 0x1F, 0x3F, 0xFF, 0xC0, 0x00, 0x06, 0x00, 0x00, 0x00, 0x18, 0x00, 0x00, | |
0x03, 0xFF, 0xFB, 0xFE, 0x0F, 0x1F, 0xFF, 0xE0, 0x00, 0x06, 0x00, 0x00, 0x00, 0x18, 0x00, 0x00, | |
0x00, 0xFF, 0xFB, 0xFF, 0x03, 0x9F, 0xFF, 0xF0, 0x00, 0x06, 0x00, 0x00, 0x00, 0x18, 0x00, 0x00, | |
0x08, 0xFF, 0xFB, 0xFF, 0xE0, 0x1F, 0xFF, 0xF8, 0x00, 0x06, 0x00, 0x00, 0x00, 0x18, 0x00, 0x00, | |
0x0E, 0x0F, 0xFD, 0xFF, 0xF8, 0x0F, 0xFF, 0xF8, 0x00, 0x06, 0x00, 0x00, 0x00, 0x18, 0x00, 0x00, | |
0x0F, 0x03, 0xFD, 0xFF, 0xFF, 0x0F, 0xFF, 0xFC, 0x00, 0x07, 0x00, 0x00, 0x00, 0x38, 0x00, 0x00, | |
0x0F, 0xF0, 0xFD, 0xFF, 0xFF, 0x0F, 0xFF, 0xFC, 0x00, 0x07, 0x80, 0x00, 0x00, 0x78, 0x00, 0x00, | |
0x07, 0xF8, 0x1C, 0xFF, 0xFF, 0x8F, 0xFF, 0xFC, 0x00, 0x07, 0xC0, 0x00, 0x00, 0xF8, 0x00, 0x00, | |
0x07, 0xFF, 0x04, 0xFF, 0xFF, 0xC7, 0xFF, 0xF8, 0x00, 0x07, 0xF8, 0x00, 0x07, 0xF8, 0x00, 0x00, | |
0x07, 0xFF, 0xE0, 0xFF, 0xFF, 0xE7, 0xFF, 0xF0, 0x00, 0x07, 0xFF, 0xFF, 0xFF, 0xF8, 0x00, 0x00, | |
0x03, 0xFF, 0xE0, 0xFF, 0xFF, 0xE7, 0xFF, 0x00, 0x00, 0x07, 0xFF, 0xFF, 0xFF, 0xF8, 0x00, 0x00, | |
0x03, 0xFF, 0xFE, 0x7F, 0xFF, 0xF3, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, | |
0x03, 0xFF, 0xFE, 0x7F, 0xFF, 0xF3, 0xC0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, | |
0x01, 0xFF, 0xFE, 0x7F, 0xFF, 0xE0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, | |
0x01, 0xFF, 0xFF, 0x3F, 0xFF, 0xE0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, | |
0x01, 0xFF, 0xFF, 0x3F, 0xFF, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, | |
0x01, 0xFF, 0xFF, 0x3F, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x01, 0x80, 0x06, 0x00, 0x00, 0x00, 0x00, | |
0x00, 0xFF, 0xFF, 0x9F, 0xC0, 0x00, 0x07, 0x00, 0x00, 0x03, 0xC0, 0x0F, 0x00, 0x00, 0x00, 0x00, | |
0x00, 0xFF, 0xFF, 0x9C, 0x00, 0x00, 0x1F, 0x80, 0x00, 0x03, 0xC0, 0x0F, 0x00, 0x00, 0x00, 0x00, | |
0x00, 0xFF, 0xFF, 0x80, 0x00, 0x00, 0x3F, 0x80, 0x00, 0x01, 0x80, 0x06, 0x00, 0x00, 0x00, 0x00, | |
0x00, 0x7F, 0xFF, 0x00, 0x00, 0x00, 0x63, 0x80, 0x00, 0x00, 0x0E, 0x00, 0x00, 0x00, 0x00, 0x00, | |
0x00, 0x7F, 0xF8, 0x00, 0x00, 0x00, 0xE2, 0x00, 0x00, 0x00, 0x0E, 0x00, 0x00, 0x00, 0x00, 0x00, | |
0x00, 0x7F, 0x80, 0x00, 0x00, 0x00, 0xE0, 0x0F, 0x8F, 0xE7, 0x0E, 0x1C, 0x71, 0xC7, 0x39, 0xC0, | |
0x00, 0x3C, 0x00, 0x00, 0x00, 0x00, 0xE0, 0x1F, 0xBF, 0xFF, 0x0E, 0x7D, 0xF3, 0x9F, 0xFF, 0xC0, | |
0x00, 0x20, 0x00, 0x00, 0x00, 0x00, 0xF0, 0x3B, 0xBF, 0x7F, 0x7F, 0xFD, 0xF3, 0x9F, 0xFF, 0xC0, | |
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xFC, 0x3F, 0x8E, 0x06, 0x1C, 0x18, 0x63, 0x87, 0xBD, 0xC0, | |
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x7E, 0x7F, 0x1C, 0x0E, 0x1C, 0x38, 0xE3, 0x0E, 0x73, 0x80, | |
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x3E, 0x7C, 0x1C, 0x0E, 0x1C, 0x38, 0xE7, 0x0E, 0x73, 0x80, | |
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x1E, 0x78, 0x1C, 0x0E, 0x18, 0x38, 0xE7, 0x0E, 0x73, 0x80, | |
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x0E, 0x71, 0x9C, 0x0C, 0xF9, 0xB3, 0xEF, 0x6E, 0x73, 0xB0, | |
0x00, 0x00, 0x00, 0x00, 0x00, 0x18, 0x0E, 0x73, 0xB8, 0x1F, 0xFF, 0xFF, 0xFF, 0xFC, 0xE3, 0xE0, | |
0x00, 0x00, 0x00, 0x00, 0x00, 0x1C, 0x1C, 0x7F, 0x38, 0x1F, 0x3E, 0x7D, 0xFF, 0xDC, 0xE7, 0xC0, | |
0x00, 0x00, 0x00, 0x00, 0x00, 0x1E, 0x3C, 0x7E, 0x38, 0x1E, 0x3C, 0x79, 0xE7, 0x1C, 0xE3, 0x80, | |
0x00, 0x00, 0x00, 0x00, 0x00, 0x1F, 0xF8, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, | |
0x00, 0x00, 0x00, 0x00, 0x00, 0x1F, 0xE0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, | |
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, | |
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, | |
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, | |
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 | |
}; | |
void setup() { | |
display.begin(SSD1306_SWITCHCAPVCC, 0x3C); // //Inicializa pantalla con en la dirección 0x3D para la conexión I2C. | |
} | |
void loop() { | |
display.fillScreen(0); //Limpiamos la pantalla | |
// PUNTO Corriendo --> variación con círculos | |
display.drawPixel(x,y,1); //Dibujo un pixel en pantalla | |
display.drawCircle(x,y,10,1); // O bien un círculo | |
display.fillCircle(x,y,10,1); // relleno | |
// Caracteres | |
// display.setFont(); //Fuente por defecto -si no la hemos cambiado no es necesario seleccionarla | |
// display.setFont(&FreeSansBoldOblique12pt7b); // Especificada antes al cargar el programa | |
// display.drawChar(x,y,'a',1,0,4); //Tamaños de 1 a 8. Los tamaños típicos son 1, 2 o 4 | |
// drawChar (uint16_t x, uint16_t y, char c, uint16_t color, uint16_t bg, uint8_t tamaño) | |
// Un texto en pantalla | |
// display.setFont(&FreeMonoBoldOblique12pt7b); // Si no se quiere cambiar la fuente por defecto, ya sabes... | |
/* | |
display.setFont(&FreeSerifBold9pt7b); | |
display.setTextSize(2); // Tamaño | |
display.setTextColor(1,0); // Color (1,0) ó 0,1 invertido | |
display.setCursor(x,y); // Posiciones x e y | |
display.println("Hola, soy Aurelio"); */ | |
// Logo | |
// display.drawBitmap(0,0,logo,128,64,1); // drawBitmap (int16_t x, int16_t y, uint8_t * mapa de bits, int16_t w, int16_t h, uint16_t color) | |
// https://www.brainy-bits.com/create-arduino-array-from-pictures/ | |
x=x+10; | |
if (x>=128) {y=y+5; x=0;} // Si se acaba en x, entonces vuelve a la y=0 | |
if (y>=64) {y=0;} // Si se acaba la y, empieza | |
// display.drawPixel(0,0,1); //Esquina superior izquierda | |
display.display(); //Refrescamos la pantalla para visualizarlos | |
delay(50); | |
} |
Programas para codificar imágenes (monocromas)
Usaremos dos programas:- GIMP. Creamos una nueva imagen de tamaño 128x64 (igual que la pantalla) y, con niveles, intento que salga en blanco y negro. Exporto como BMP
- Utilizo el programa LCDAssistant. Este programa consigue codificar la imagen. En la imagen tenemos los parámetros (horizontal y 8 B)
- Por fin, hacemos la exportación en el LCDAssitant y abrimos con editor de texto. Guardamos los códigos en el lugar correcto del programa en el IDE de ARDUINO
Los enlaces a los programas LCDAssitant y LCD-Image-Converter son:
- https://drive.google.com/drive/folders/1AGauP8sLKEI95Shf9WhaRomC3HW-rkzp?usp=sharing
- https://lcd-assistant.software.informer.com/1.0/
- https://www.riuson.com/lcd-image-converter
https://randomnerdtutorials.com/esp8266-0-96-inch-oled-display-with-arduino-ide/
